1. When servicing battery, always connect cables to battery
exactly as they were before removal (ground cable to
battery negative [- or neg.] post). If incorrectly connected,
fuse (if so equipped), will blow and alternator won’t
charge battery. If this happens, connect cables correctly
2.Never expose engine ignition system to battery power.
If battery cable or any live wire contacts ignition system
ground wire, engine ignition system may be damaged.
3.If external battery charger is used, disconnect positive (+
or pos.) cable from battery to prevent possible damage.
4.See battery manufacturer’s instructions for service and
ÆÆCHECK ENGINE AND EQUIPMENT OFTEN FOR LOOSE NUTS,
TIGHTENED.
DO NOT MAKE UNNECESSARY ADJUSTMENTS. FACTORY
ADJUSTMENTS ARE NEEDED, PROCEED AS FOLLOWS:
For satisfactory engine performance, engine and equipment

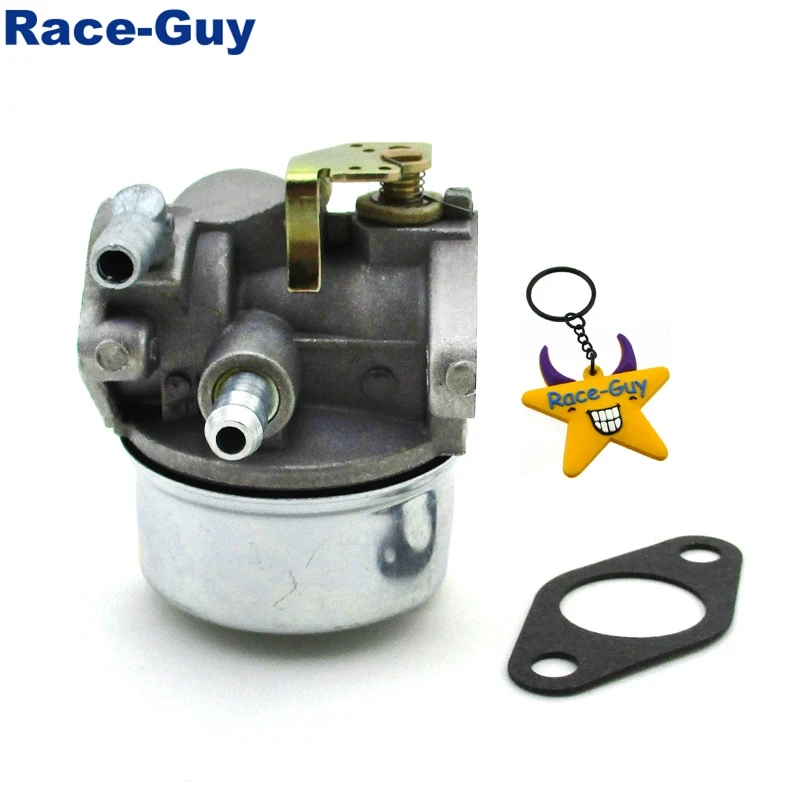

Tecumseh Ohh65 Carburetor
control must be adjusted properly. To check engine control
A.Set equipment control at “FAST” or “HIGH SPEED” and keep
The engine control lever should touch “HIGH SPEED STOP”.
If it does, the controls are adjusted correctly and no adjustment
NOTE:If engine control lever does not touch “HIGH SPEED
B.Loosen clamp screw so remote control cable can be moved
C.Move engine control lever so it is touching “HIGH SPEED
D.Tighten clamp screw securely so cable clamp will hold remote
control cable in place when equipment control is used.
The engine controls should now be adjusted correctly. If
additional adjustments are needed, make them at the
instructions).
If you think your carburetor needs adjusting, see your nearest
performance should not be affected at altitudes up to 7,000 feet.
For operation at higher elevations, contact your AUTHORIZED
ÂÂENGINE SPEED:
FACTORY SET FOR PROPER ENGINE SPEED.
SETTING CAN BE DANGEROUS.
ENGINE WARRANTY.
For engine adjustments and/or repairs not covered in this
“OPERATOR’S MANUAL” see “WARRANTY & REPAIR” on Page 6.
NEVER STORE ENGINE WITH FUEL IN TANK INDOORS OR
FUMES MAY REACH AN OPEN FLAME, SPARK OR PILOT
DRYER OR OTHER GAS APPLIANCE.
IF ENGINE IS TO BE UNUSED FOR 30 DAYS OR MORE, PREPARE
ÀÀFUEL SYSTEM:
A.Remove all gasoline from carburetor and fuel tank to prevent
gum deposits from forming on these parts and causing
DRAIN FUEL INTO APPROVED CONTAINER OUTDOORS,
DO NOT SMOKE.
B. Run engine until fuel tank is empty and engine stops due to
NOTE:If “Gasohol” has been used, complete above
instructions and then put 1/2 pint of gasoline into
NOTE:Gasoline preservative and stabilizer (such as
'Tecumseh Gasoline Preservative'), is an acceptable
alternative in minimizing the formation of fuel gum
deposits during storage. Add stabilizer to gasoline in
fuel tank or storage container. Always follow mix ratio
found on stabilizer container. Run engine at least 10
minutes after adding stabilizer to allow it to reach
ÁÁDRAIN CARBURETOR (if so equipped):
Drain carburetor by pressing upward on bowl drain (see Figure 8),
DRAIN FUEL INTO APPROVED CONTAINER OUTDOORS,
NOT SMOKE.
NOTE: Do not drain carburetor if using fuel stabilizer.
Change oil if it has not been changed in the last three (3) months.
See “CHANGE OIL” instructions in “MAINTENANCE” section.
A.Remove spark plug. Squirt one (1) oz. (30 ml) of clean engine
B. Cover spark plug hole with a rag.
AVOID SPRAY FROM SPARK PLUG HOLE WHEN
D. Install spark plug. Do not connect spark plug wire.
Remove any clippings, dirt, or chaff from exterior of engine.
See equipment manufacturer’s instructions for proper storage of
Figure 8
BOWL DRAIN
